An outdoor multi-channel phytosensing system designed for environmental monitoring and real-time plant physiology tracking. Built with IP65-rated weatherproof enclosures, the system supports both wired (Ethernet with Power over Ethernet) and wireless (dual-band 2.4/5 GHz Wi-Fi via Silex DS700AC modules) data transmission. It features the same sensor suite as our indoor solutions—such as AI Biolab—and includes 2 m sensor cables alongside a two-segment power line extending up to 23 m. Requires a 12 V DC power supply. The system is designed for AI-based data analysis, stress monitoring and prediction.
Plant Sensors
- 2x tissue impedance, electrochemical sap flow analysis, ionic content: 2x differential electrodes, 0.7mm x 10 mm needles, V2A stainless steel, 0.01-1V excitation,

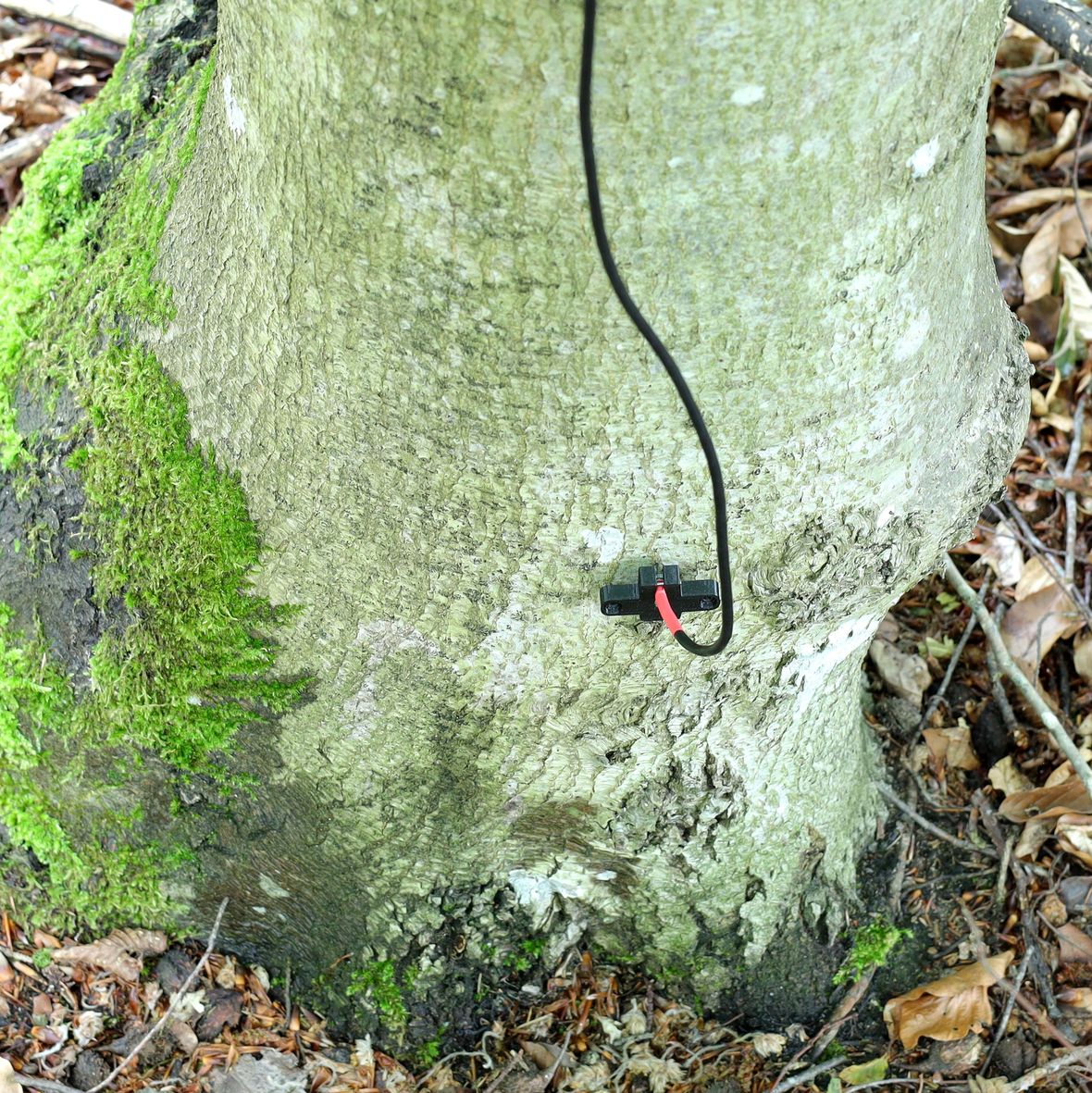

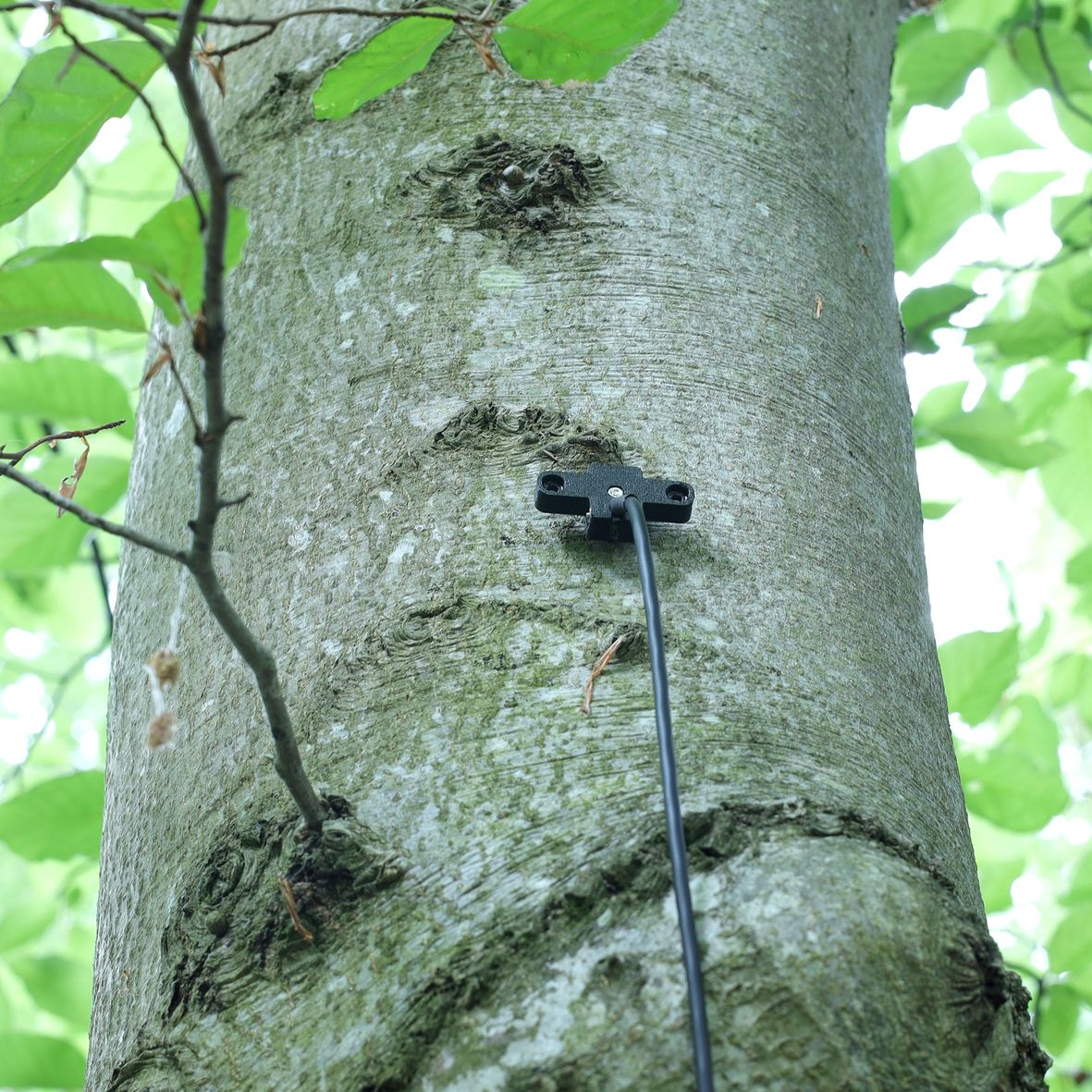

- electrochemical imp. spectroscopy (EIS): time-frequency EIS for in-situ analysis, two points (lower and upper position of electrodes)
- leaf transpiration sensor: differential air-humidity-based method

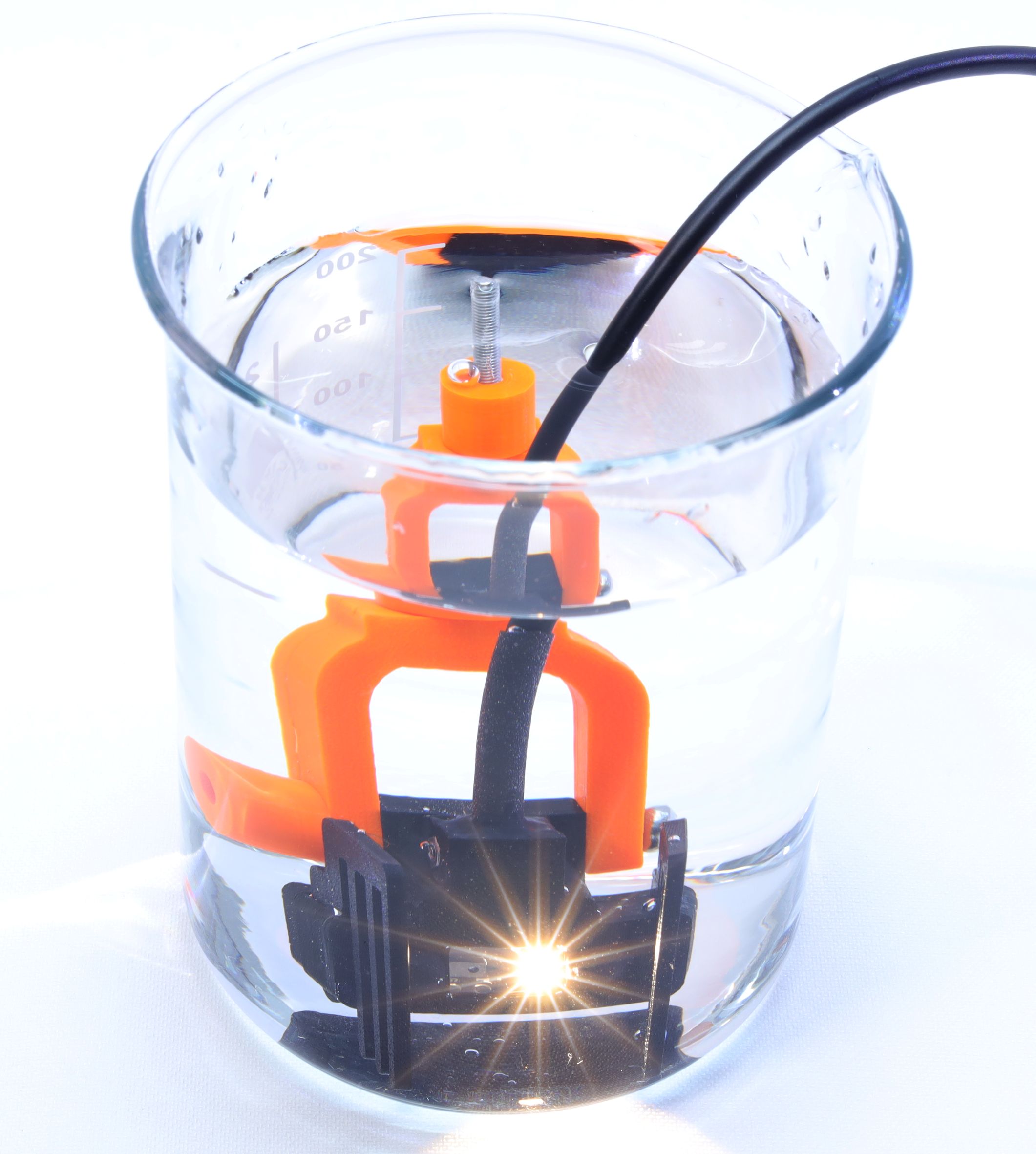

- wet biomass sensor (stem, fruit or leaf area): fix frequency dielectric spectroscopy, 0.5-3 MHz
- soil moisture and roots performance (SMRP) sensor: fix frequency dielectric spectroscopy, 0.5-3 MHz
- chlorophyll content: vegetation indices based on multispectral reflectance measurements, AS7343 sensor, 14 spectral channels
- (optional, not included in the standard package) leaf temperature: precision LM35 sensor, Texas Instruments
- (optional, not included in the standard package) 2x biopotentials: differential, 4x V2A stainless steel electrodes, input impedance/current 10−15Ohm, ±70pA
- (optional, not included in the standard package) acoustic loudness sensor: 20Hz-20kHz, the electret microphone, MAX9814 amplifier
All sensor cables are 2 meters long.
Environmental sensors
- ambient light: ALS-PDIC15-21C (590nm peak) sensor
- humidity, temperature: HIH-5031-001, LM35CA (on the transpiration sensor)
- EM emission: 450Mhz-2.5Ghz RF power meter, MAX2204
- magnetometer: 3-axis, LIS3MDL (in the main processing package)
Connectivity
- WiFi 2.4GHz/5GHz: Silex DS700AC module
- Ethernet (with Power over Ethernet): Silex DS700AC module
- USB 2.0
Protection and power supply
- main package with electronic modules: IP65 (the system should be protected from direct sun light to avoid overheating)
- power supply: 12V, current ~0.7A (max) in data transmission mode
- transparent (standard) or non-transparent (optional, upon request) upper part
- tested outdoor power supply: Fairy Light compatible power supply, 12V 2A.
- tested length of power supply lines: 23 meters (with 2x 10 meters extension cables)
Software and data stream
- Wifi connectivity management: download from the Silex
- Phytosensor Client software: included, for the Windows OS
- 49 data channels
- Data stream can be read by any custom software/platform/OS (e.g. python, see the AppNote 28)
- AI data analysis and stress prediction: subscription-based package
Support:
- 1-2 online meetings for installation, software setup and initial measurements (free, included in the package)
- extended support with 6 hours reaction time (subscription)
- assistance in interpreting biological data based on available biological models (PhD level expertise, subscription)
- on site installation and maintenance (via collaborating partners)
The delivering set includes:

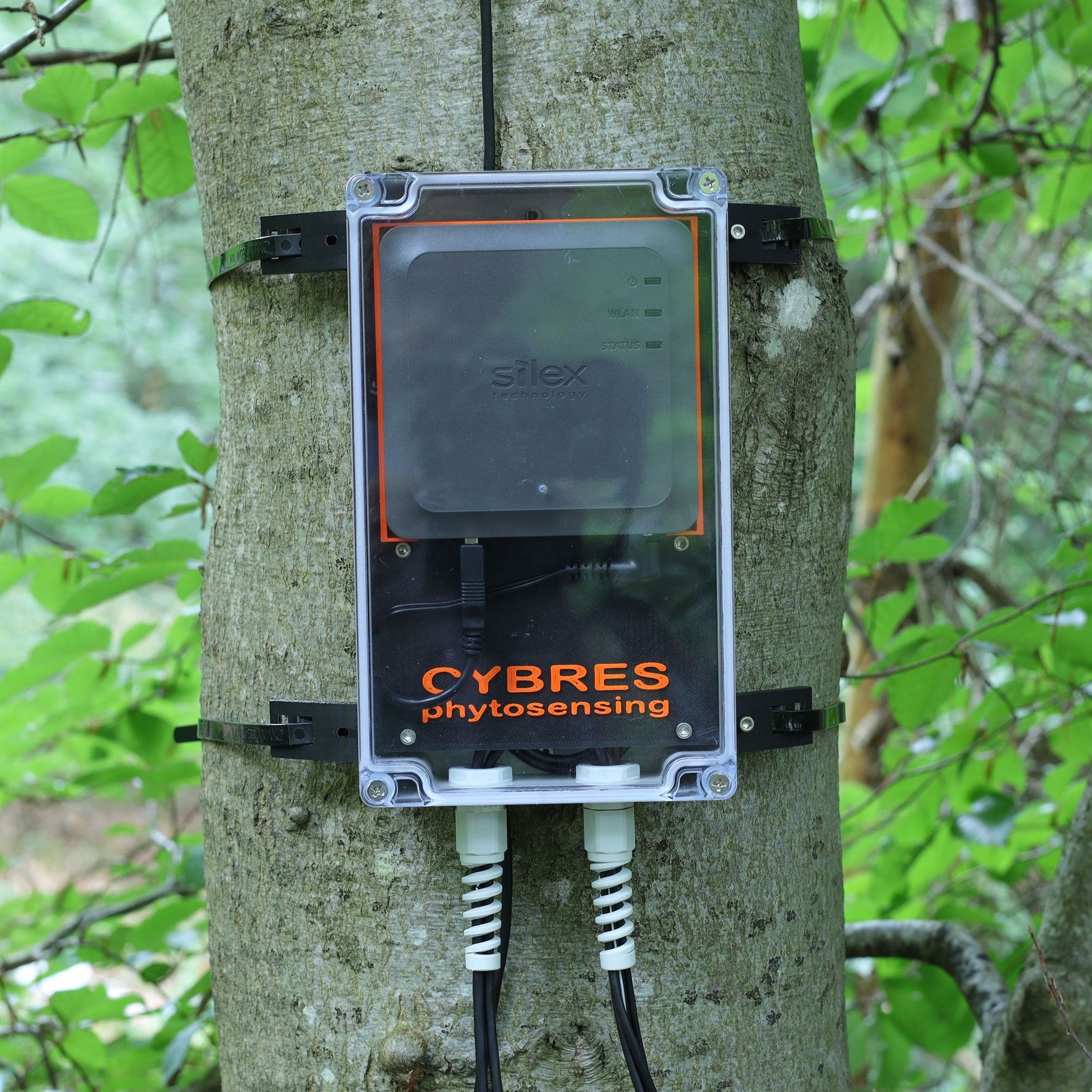

- Main system module (IP65 with transparent upper part) with electrodes, it includes the Phytosensor MU3.4 module and the Silex DS700AC module, all sensor cables – 2m , power supply cable – 3m

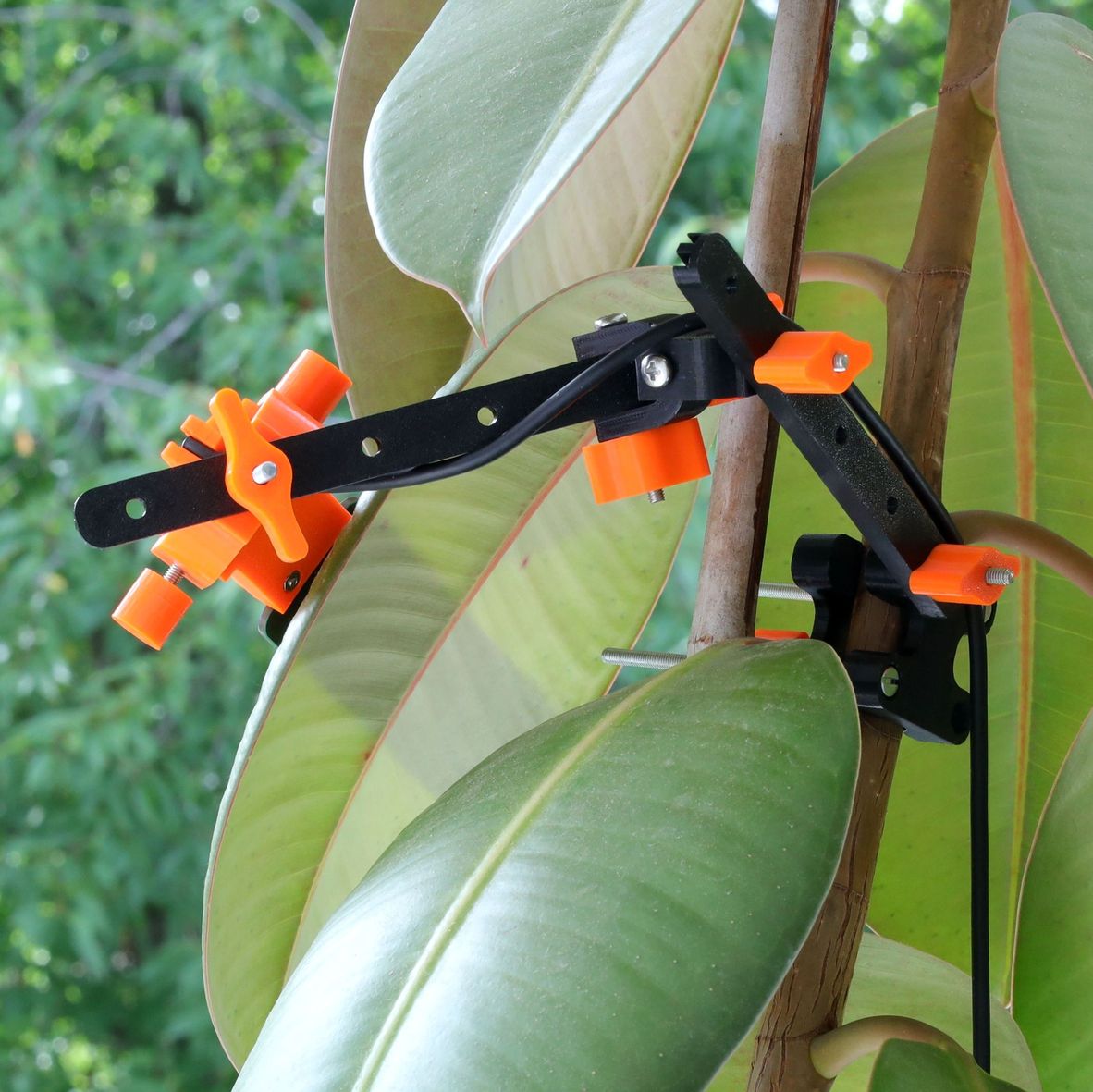

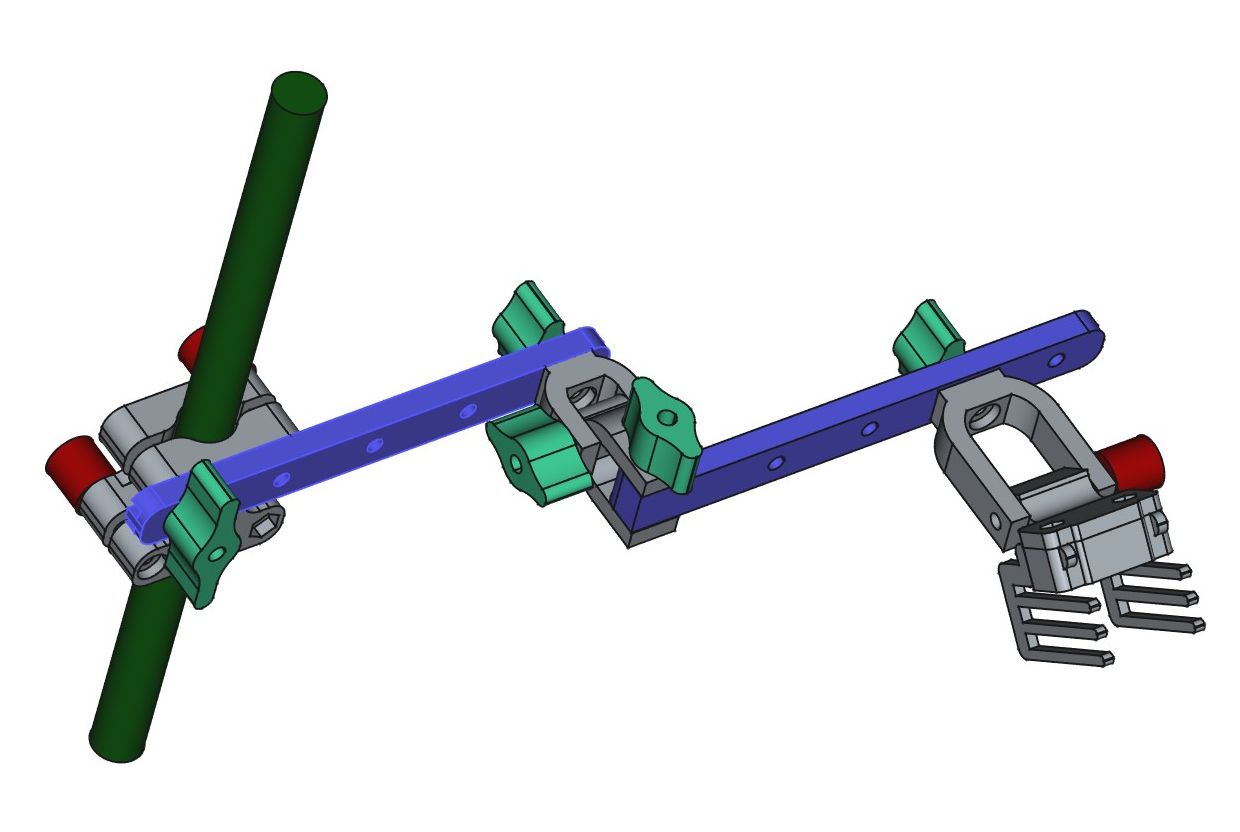

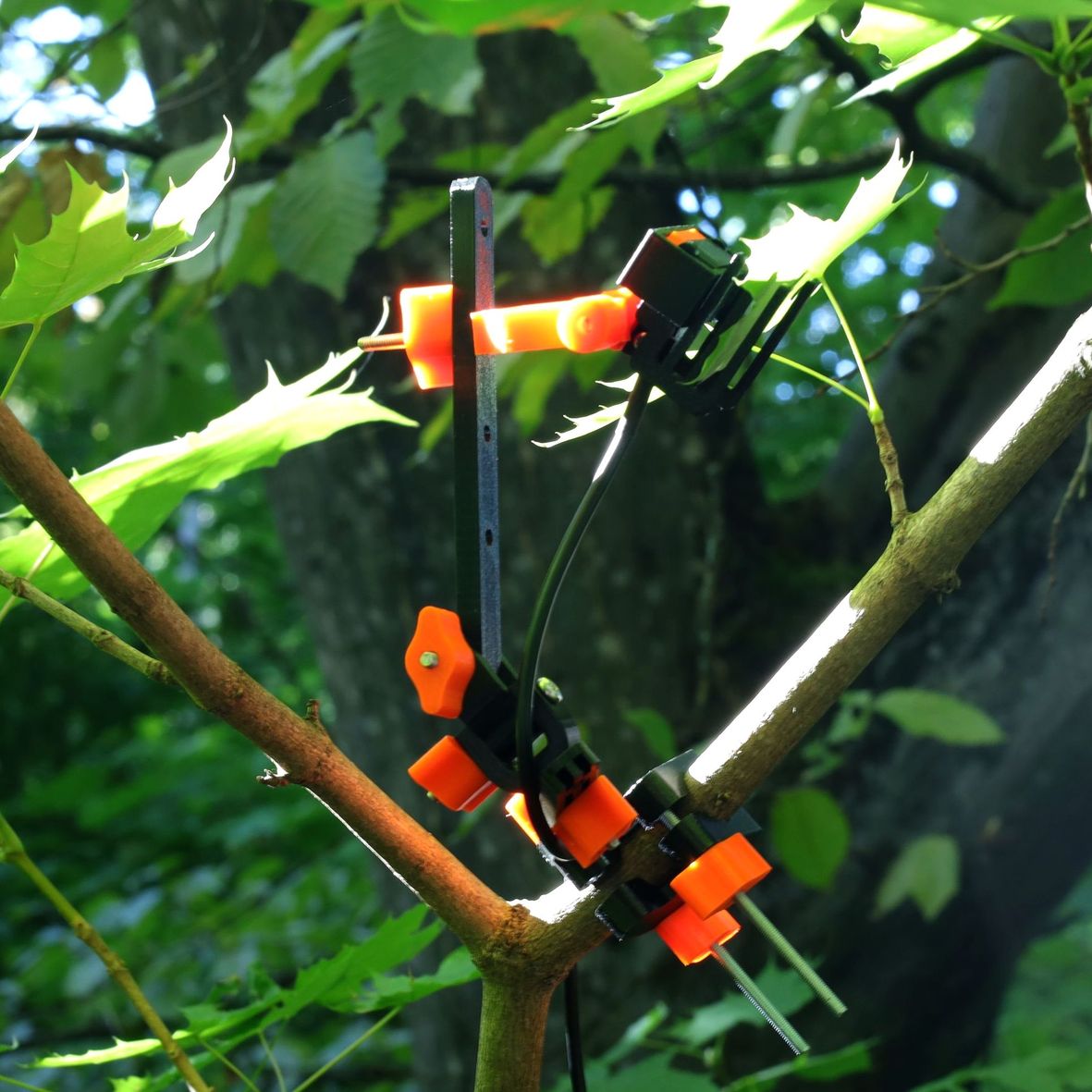

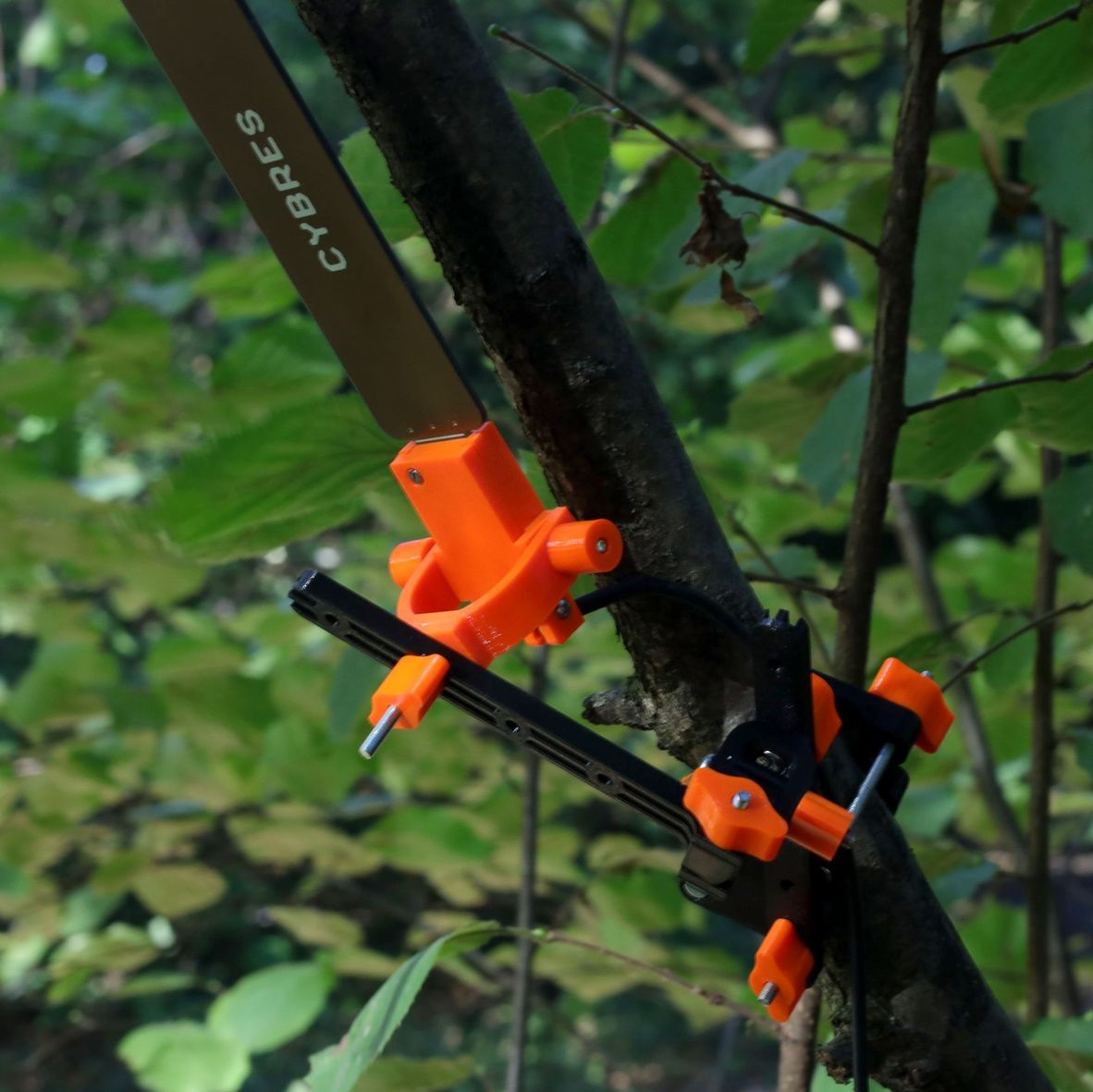

- Plastic connectors, cable support, 2x 7DoF mounting arms (for optical and biomass sensors), replacement elements: 3D printed, .stl files are published on www.printables.com and can be printed by customers)
- Two angled brackets sloped forward/backwards: for mounting (e.g. on trees) and for cable management
- Fairy Light compatible power supply unit, 12V 2A (IP44), 2x 10 meters extension cables
- Software (download from web);
- Short user manual in different languages;
- Full user manual (download from web);
- Different application notes (download from web);
Application notes and manuals
- Application Note 28. Using phytosensor in precision agriculture, vertical farms, hydroponics and agricultural AI applications
- Application Note 29. Outdoor Multi-Channel Phytosensor System
- CYBRES EIS for electrochemical and electrophysiological analysis of fluids and organic tissues: EXTENDED USER MANUAL
- CYBRES Advanced Phytosensing System, short description
